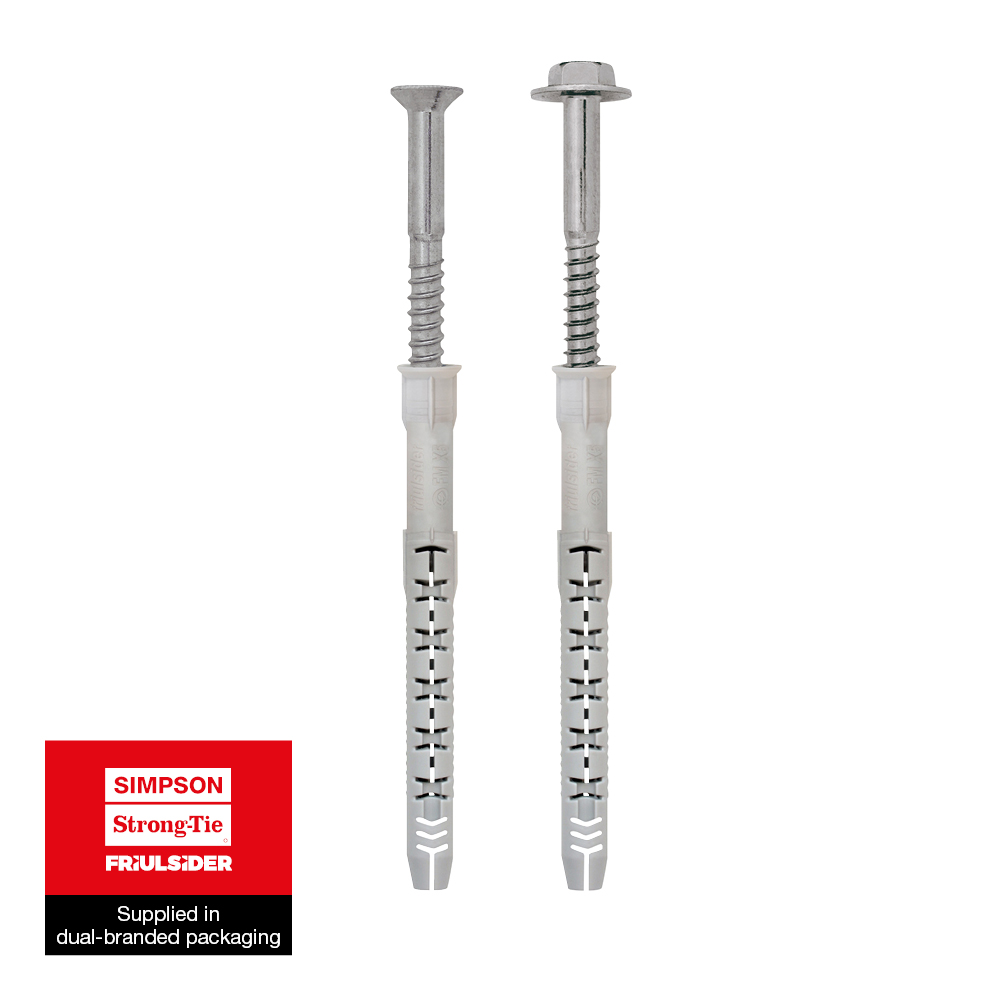

Anclaje nailon largo flexible de nailon - A4 de acero inoxidable
El anclaje nailon largo de nailon FM-X5 es ideal para fijar elementos a cualquier tipo de soporte hueco o macizo que requiera un ajuste manual durante la instalación, como marcos de ventanas o puertas.
El anclaje se suministra premontado con un tornillo de cabeza fresada de acero inoxidable A4 para que se pueda usar en Exterior
![](/sites/default/files/field_taxo_term_pim_icon/2024/04/15/220551/f-ce-prodla-ill-pictogram-eu-eu-cn-default_tag_pdf.png)
![](/sites/default/files/field_taxo_term_pim_icon/2021/04/07/184340/f-ete2-prodla-ill-pictogram-eu-eu-cn-default_tag_pdf.png)
![](/sites/default/files/field_taxo_term_pim_icon/2021/04/07/184939/f-cl3-prodla-ill-pictogram-eu-eu-cn-default_tag_pdf.png)
![](/sites/default/files/field_taxo_term_pim_icon/2021/04/07/184939/f-a4inox-prodla-ill-pictogram-eu-eu-cn-default_tag_pdf.png)
![](/sites/default/files/field_taxo_term_pim_icon/2021/04/07/184939/f-amb-prodla-ill-pictogram-eu-es-cn-default_tag_pdf.png)
![](/sites/default/files/field_taxo_term_pim_icon/2023/03/30/225815/picto-fixcalc-default_tag_pdf.png)
Detalles de producto
Características
Materia
- Tornillo: acero inoxidable A4
- Anclaje: nylon
Ventajas
- Anclaje y tornillo premontados
- Colocar a través del elemento a fijar
- 8 aletas que evitan cualquier rotación dentro del agujero perforado
- Nailon flexible y par de apriete bajo, esto permite ajustar manualmente
- Anclaje en poliamida PA6 que garantiza una muy buena resistencia al envejecimiento
Aplicaciones
Aplicación
- Fijación de cabrios o rastreles
- Fijación de escuadras simples
- Fijación de elementos de carpintería,
- Fijación de carriles y abrazaderas para cables y tubos,
- Fijación de revestimientos delgados en fachadas.
Soportes
- Hormigón sin fisuras
- Hormigón celular,
- piedra natural,
- mampostería maciza y hueca.
Datos técnicos
DImensions cheville avec vis tête fraisée
Modelo | Product Reference | Ø agujero x longitud del anclaje [d0xL]. [mm] | Espesor pieza a fijar [tfix,max] [mm] | Profundidad mínima de perforación [h1] [mm] | Profundidad de anclaje nominal [hnom]. [mm] | Esp. míni. de soporte [hmin]. [mm] | Esp. max. agujero pieza a fijar [df] [mm] | Ø tornillo [Lv] [mm] | Longitud tornillo [Lv] [mm] | Boquilla | Ctd por caja | Ctd por embalaje |
---|---|---|---|---|---|---|---|---|---|---|---|---|
6430100808000 | FM-X5 A4 | Ø8x80 | 10 | 80 | 70 | 120 | 8.5 | 6 | 85 | T30 | 100 | 1000 |
6430100812000 | FM-X5 A4 | Ø8x120 | 50 | 80 | 70 | 120 | 8.5 | 6 | 125 | T30 | 50 | 500 |
Design capacities - single anchor - no edge distances
Modelo | Design capacities - single anchor - no edge distances | ||||||||
---|---|---|---|---|---|---|---|---|---|
Design capacity | |||||||||
Tension - NRd | Shear - VRd | Bending moment MRd [Nm] | |||||||
Non-cracked concrete C12/15 [kN] | Non-cracked concrete C16/20 [kN] | Autoclaved aerated concrete AAC [kN] | Solid brick [kN] | Non-cracked concrete C12/15 [kN] | Non-cracked concrete C16/20 [kN] | Autoclaved aerated concrete AAC [kN] | Solid brick [kN] | ||
6430100808000 | 0.8 | 1.4 | 0.3 | 1.4 | 0.8 | 1.4 | 0.3 | 1.4 | 7.7 |
6430100812000 | 0.8 | 1.4 | 0.3 | 1.4 | 0.8 | 1.4 | 0.3 | 1.4 | 7.7 |
1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).
*Not covered by ETA-11/0080
Instalación
Montaje
Installation data
Modelo | Product Reference | Ø agujero x longitud del anclaje [d0xL]. [mm] | Ø drilling hole [d0] [mm] | Min. drill depth [h1] [mm] | Ø drilling fixture [df] [mm] | Wrench size [SW] [mm] |
---|---|---|---|---|---|---|
6430100808000 | FM-X5 A4 | Ø8x80 | 8 | 80 | 8.5 | - |
6430100812000 | FM-X5 A4 | Ø8x120 | 8 | 80 | 8.5 | - |
Spacings and edge distances
Modelo | Product Reference | Ø agujero x longitud del anclaje [d0xL]. [mm] | Spacings and edge distances | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Non-cracked concrete C12/15 | Non-cracked concrete C16/20 | Autoclaved aerated concrete AAC | Solid brick | |||||||||||||
Min. edge distance [cmin] [mm] | Min. spacing [smin] [mm] | Characteristic edge distance [ccr,N] [mm] | Minimun thickness of support [hmin] [mm] | Min. edge distance [cmin] [mm] | Min. spacing [smin] [mm] | Characteristic edge distance [ccr,N] [mm] | Minimun thickness of support [hmin] [mm] | Min. edge distance [cmin] [mm] | Min. spacing [smin] [mm] | Minimun thickness of support [hmin] [mm] | Min. edge distance [cmin] [mm] | Min. spacing [smin] [mm] | Minimun thickness of support [hmin] [mm] | |||
6430100808000 | FM-X5 A4 | Ø8x80 | 80 | 80 | 140 | 100 | 60 | 60 | 100 | 100 | 100 | 250 | 200 | 100 | 250 | 110 |
6430100812000 | FM-X5 A4 | Ø8x120 | 80 | 80 | 140 | 100 | 60 | 60 | 100 | 100 | 100 | 250 | 200 | 100 | 250 | 110 |
